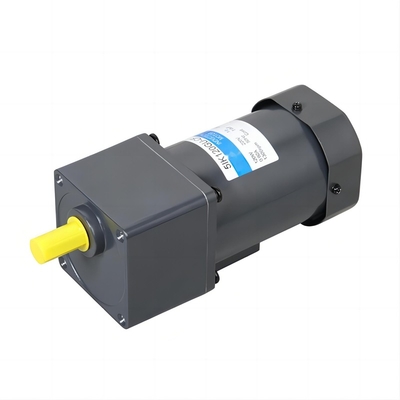

Name: IP20 5IK120GU LOW SPEED AND HIGH TORQUE AC INDUCTION MOTOR, GOOD QUALITY FOR TRANSPORT, PACKING MACHINE, ELEVATOR, DYNAMO
Brand: IP20 5IK120GU LOW SPEED AND HIGH TORQUE AC INDUCTION MOTOR, GOOD QUALITY FOR TRANSPORT, PACKING MACHINE, ELEVATOR, DYNAMO
SKU: 2IK,3IK,4IK,5IK,6IK
Rating: 4.6 (191 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Warranty: 1 year

Model Number: 2IK,3IK,4IK,5IK,6IK

Type: Induction Motor

Frequency: 50/60Hz

Phase: Single-phase

Protect Feature: IP20

AC Voltage: 110V,220V,380V,415V

Efficiency: IE2

Basis informatie

Model Number: 2IK,3IK,4IK,5IK,6IK

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Carton, Wooden Case,pallet

Supply Ability: 10000 Piece/Pieces per Month

Productomschrijving

MOTOR SIZE	60MM / 70MM / 80MM / 90MM / 104MM
MOTOR TYPE	INDUCTION MOTOR / REVERSIBLE MOTOR TORQUE MOTOR / SPEED CONTROL MOTOR
MOTOR POWER	3W / 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120W / 140W / 180W / 200W CAN BE CUSTOMIZED
OUTPUT SHAFT	8MM / 10MM / 12MM / 15MM ROUND SHAFT/D-CUT SHAFT/KEY WAY SHAFT/CAN BE CUSTOMIZED
MOTOR VOLTAGE	110V / 120V / 220V / 230V / 380V / 400V / 415V
FREQUENCY	50HZ / 60HZ
ACCESSORIES	TERMINAL BOX / FAN / ELECTROMAGNETIC BRAKE THERMAL PROTECTOR / CONTROLLER
GEARBOX RATIO	MINIMUM 3:1------MAXIMUM 750:1
GEARBOX TYPE	PARALLEL SHAFT GEARBOX / STRENGTH TYPE GEARBOX RIGHT ANGLE HOLLOW / SOLID/L TYPE WORM SHAFT
*POWER/SHAFT/CAN BE CUSTOMIZED ACCORDING TO YOUR REQUIREMENTS
