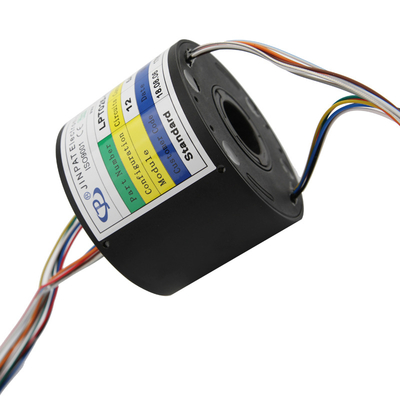

Electrical slip ring rotary joint plug, 12 size 25.4mm, wind generator circuit 5A hole slip ring LPT025-1205

1 Piece
MOQ
Electrical slip ring rotary joint plug, 12 size 25.4mm, wind generator circuit 5A hole slip ring LPT025-1205
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: LPT025-1205
Type: Electronic Accessories
Via diameter: 25.4mm
Ring current: 12
Working speed: 0~300rpm
Basis informatie
Model Number: LPT025-1205
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Product Description

Bargain Price Only in Alibaba

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.
Features:
  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install
Main Applications:
  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment/Exhibition
  • display equipment
  • Robots
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging
  • machinery
  • Ship offshore equipment
  • Construction machinery

Specification

Circuits 12
Current Rating 5A
Voltage 240 VAC/DC
Dielectric Strength 1000V@50Hz between circuits
Insulation 500MΩ@500VDC
Hole Diameter 25.4 mm
Working Speed 0~300 RPM
Contact Precious metal
Housing Aluminum alloy
Wire Length 300mm (rotor), 300mm (stator)
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP50

Outline Drawing

Product Display
